Flatwork ironers
CF-2050 /2650/3350 TOUCH II ECO-ENERGY
Datasheets and catalogues

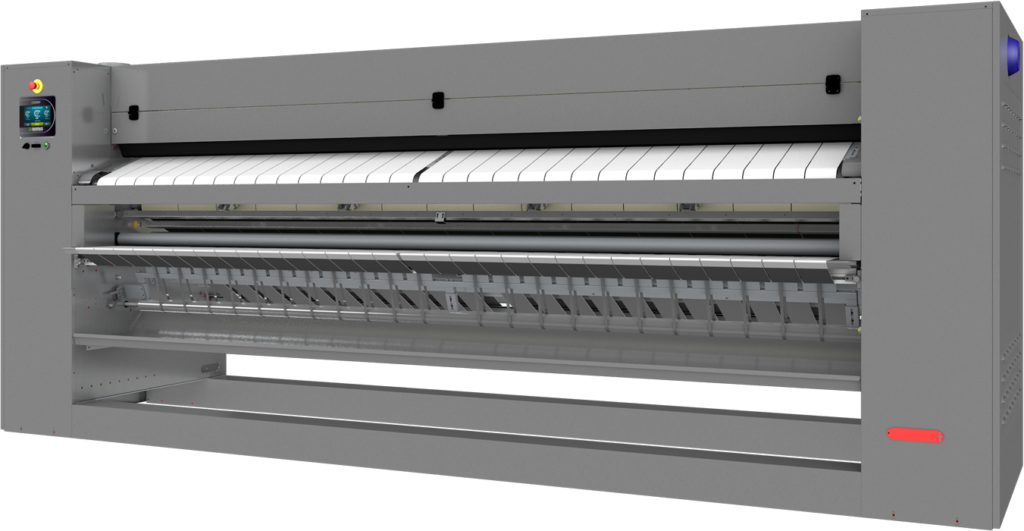

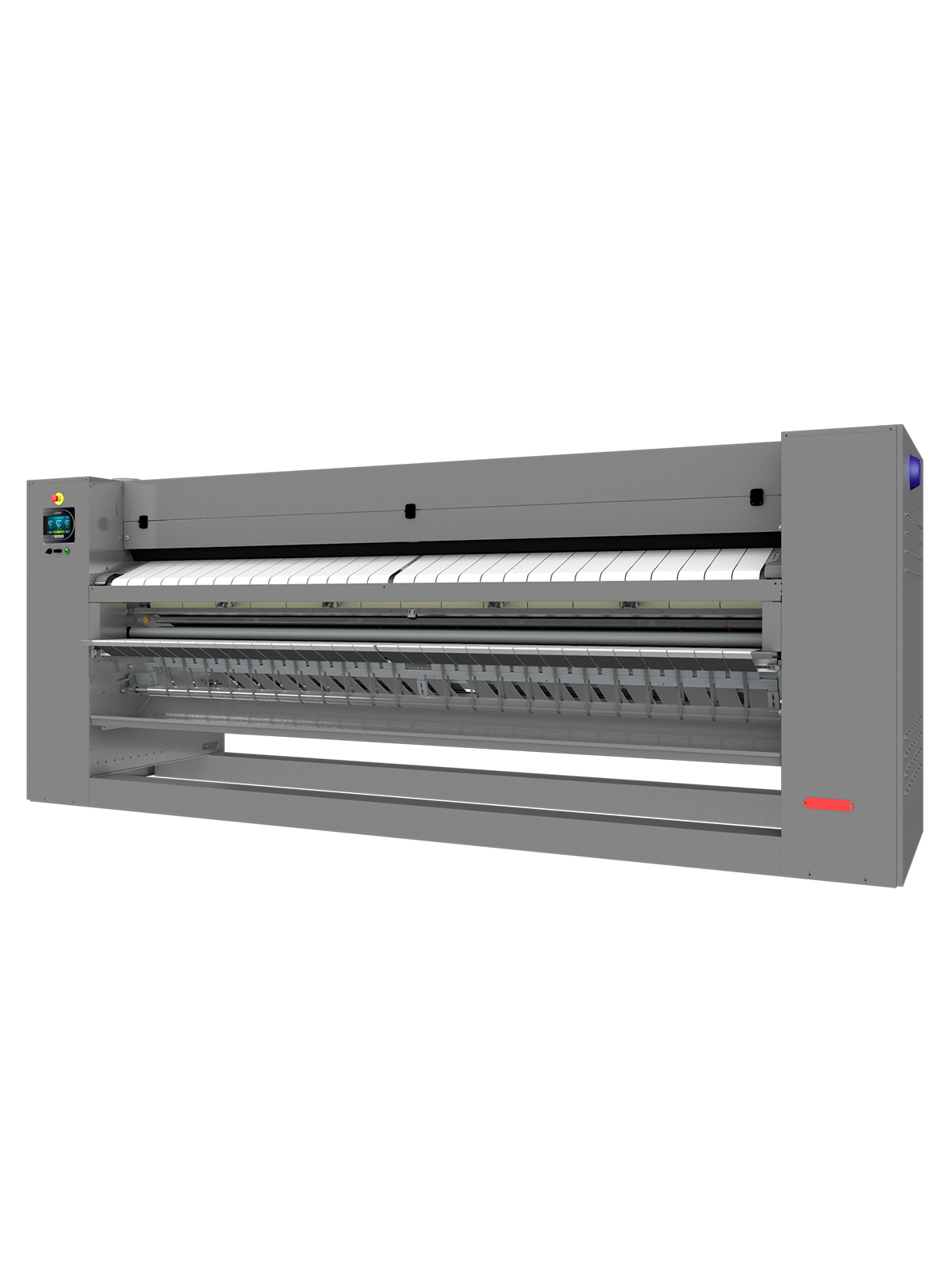

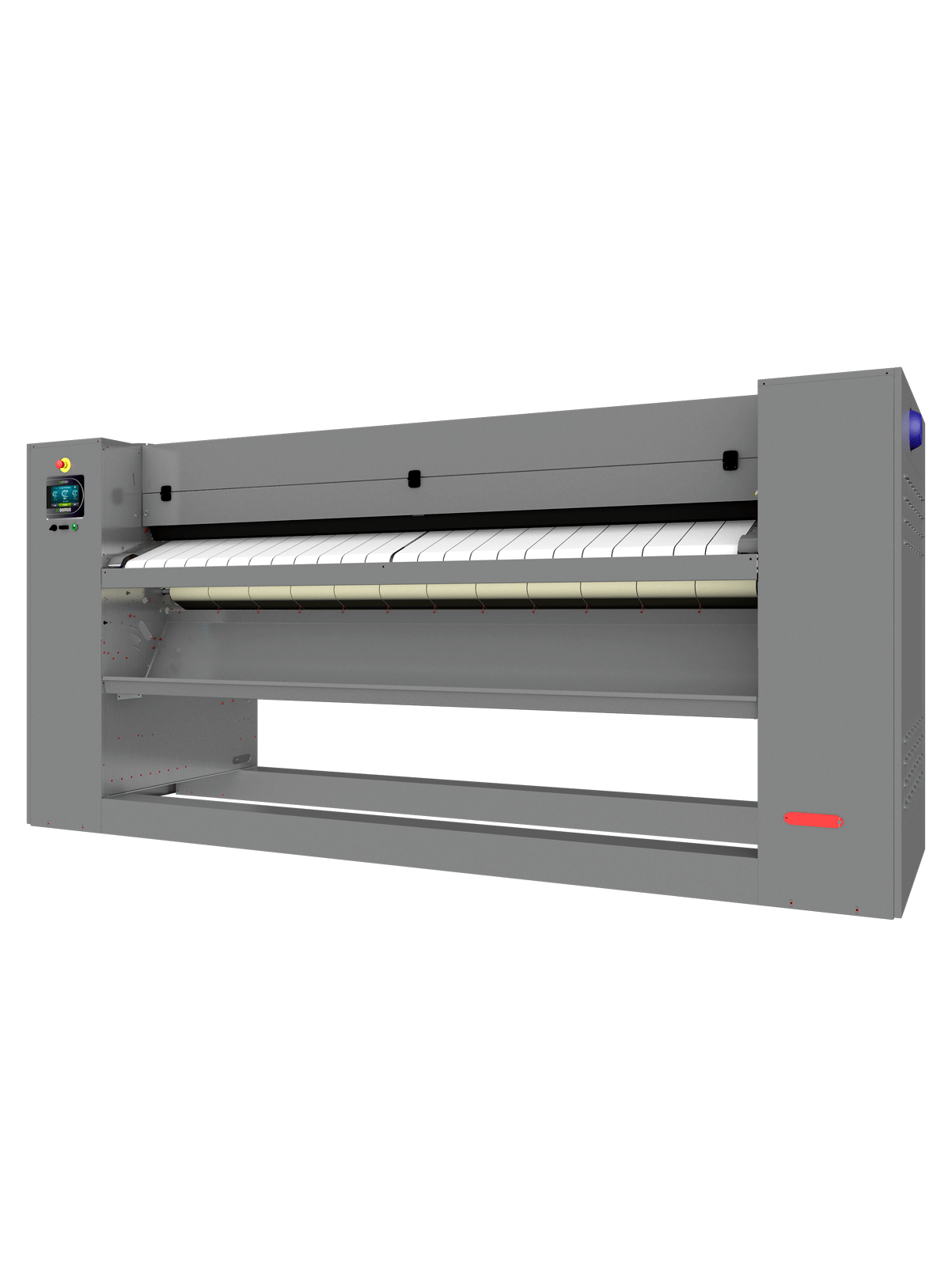

NEW generation of flatwork ironers.
We’re launching a new range of wall-mounted flatwork ironers with Ø500 and Ø650 mm rollers — now with an integrated folder and multiple upgrades designed for everyday use.
With the TOUCH II microprocessor, you can easily create as many programs as you need and adjust the speed with the frequency inverter. Everything is designed to give you full control and adapt to every type of linen.
The structure is now even more robust, finished in grey skinplate and stainless steel, and features an advanced steam extraction system that improves the working environment. And if you go for the gas version with a radiant burner, you can boost productivity by up to 25%.
Efficient, durable, and with a flawless finish — a reliable tool to keep your laundry business moving forward.
Ver más vídeos
TOUCH II
- TOUCH II: an easy-to-use microprocessor, fully programmable with a 7” touchscreen.
- Unlimited programs: in addition to the preset ones, you can create as many programs as your business needs.
- Multilingual interface: choose your preferred language from a wide and constantly growing list.
- USB port: configure, update, and analyze your machines without needing an internet connection.
ROBUSTNESS
- Roller with inverter: optimizes performance to reduce wear on belts and mechanical components.
- Reinforced structure and skinplate panels: built to last.
- Nomex ironing belts: resistant to high temperatures.
- OPTIONS: nickel-plated cylinder for greater durability and corrosion resistance.
EFFICIENCY
- EFFICIENT IRON: automatically adjusts ironing speed based on residual moisture, saving energy.
- OPTIMAL FEEDING: automatic speed adjustment — slower for easier linen feeding and faster for higher output, up to 15 m/min (standard on Ø650, optional on Ø500). Models without folder.
- Models with radiant gas burner: up to 25% more productivity, saving both time and energy.
- Excellent heat conduction thanks to the roller’s material and thickness, for better energy control and distribution.
- Automatic stop at 80 ºC: extends the life of the ironing belts.
- Precise temperature control via the microprocessor ensures low energy consumption.
VERSATILITY
- Radiant gas model: greater flexibility for higher production and better performance in high-altitude locations.
- OPTIONS:
-
- Linen drop tray: keeps linen off the floor for improved hygiene (RABC compliant).
- SRE: standard rear exit without folder.
- LF: front exit with integrated longitudinal folder.
- LFRE: front and rear exit with integrated longitudinal folder.
- CPL-CROSS: external cross-folder.
MAINTENANCE
- Easy access to all components from both sides of the machine.
- Compact design: fits into tight spaces — even the optional folder is built into the main body.
- Single connection for power and steam exhaust.
ERGONOMICS
- Acoustic comfort: maximum 65 dB.
- Skinplate panels: easy to clean and more hygienic (RABC compliant).
- Ergonomic feeding height: 1,170 mm for comfortable linen introduction.
- Compact dimensions: space-saving design.
