Low speed coin operated laundry washing machines with advanced features in terms of energy efficiency and connectivity

At Domus, as a leading company in the sector of self-service laundry machinery, we have coin operated laundry washing machines with advanced features, an exceptional washing quality and a degree of energy efficiency never seen before in models of similar characteristics offered by the current market.

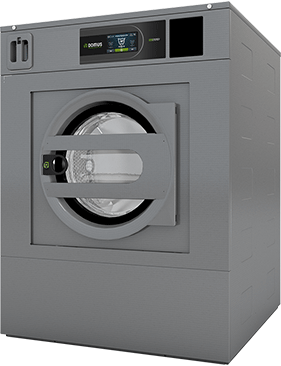

Below, we will show you in more detail the features of this low speed industrial washing machine, with a load capacity of 60, depending on the model chosen. It is important to highlight that it incorporates the new TOUCH II microprocessor as standard, it is characterised for requiring hardly any maintenance tasks, as well as for being an efficient, powerful and advanced machine.

previous arrow
next arrow
previous arrow
next arrow

TOUCH II: a turning point within the industrial laundry sector

7” programmable and easy to use touch screen.
USB connection. Includes pc software to programme, traceability, data analysis…
On-screen videos: advertisements, instructions (useful for self-service).
37 languages available.
8 standard dispensing signals.

The highest degree of energy efficiency

High G FACTOR of 200 for DLS-27/36.
G FACTOR of 150 for DLS-60.
Smart weighing system.
Optimal loading: manual indication of the load weight.
Prepared for connection to water recovery tanks:
Low water consumption.

Versatility and connectivity are two of its strengths

A made-to-measure washing machine and with the option for customisation.
OPL<>Coin / Token.
Electric <> Hot water.
Drain valve <> Pump.
Possibility of using Wet Cleaning washing programmes.
Laundry management: OPL and self-service.
Remote payment system.
Remote technical assistance.

An ergonomic washing machine and with barely any maintenance tasks

Larger door diameters: Ø460 (for DLS-27) and Ø560 (for DLS-36/60).
Folding panel: easy-access to components.
Equivalent parts for all models: engine, contactors, electronic parts.
Traceability and error diagnosis.

Other features of this washing machine for coin-operated laundries

Exterior unit in skinplate
Drum and tub in AISI 304 stainless steel.
Detergent dispenser with 4 compartments.
Imbalance control using an inverter.
Loading aid system.
Certifications: CE, WRAS and EAC. ETL Option.

Supplementary options

Double drain.
3” external double drain.
Valve normally closed.
Water Recycle system: Recirculation and use of the washing water.
Card with 6 extra dosing signals, with a total of 14.
Option of incorporating a printer.
Silicone gasket for DLS-27.
Reversible door: opposite door opening.
Tropicalised model: protective board.
Steam kit to transform an E or HW heated machine into a steam version.
Exterior unit in AISI 304 stainless steel.
Front panel in AISI 304 stainless steel.
SLUICE: model with 8mm drum holes for the DLS 27/36.
Maritime voltage for electric models: 440V III 50/60
Hz with no neutral.
Voltage 230V III 50/60 Hz for DLS-60.
Coin/token kit.
Option of installing a timer to open the door.
